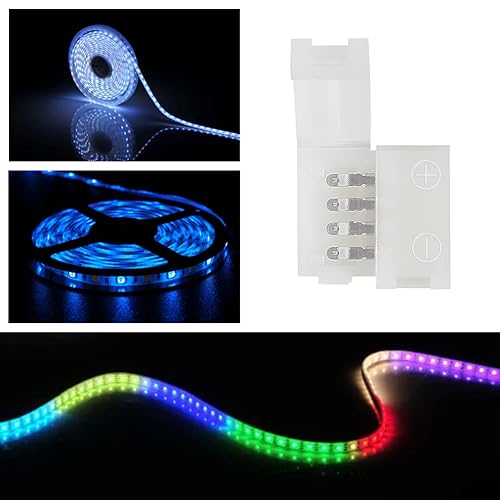

10mm 4-Pin LED Strip Connectors for RGB 5050 Light Strips - 12 Pack

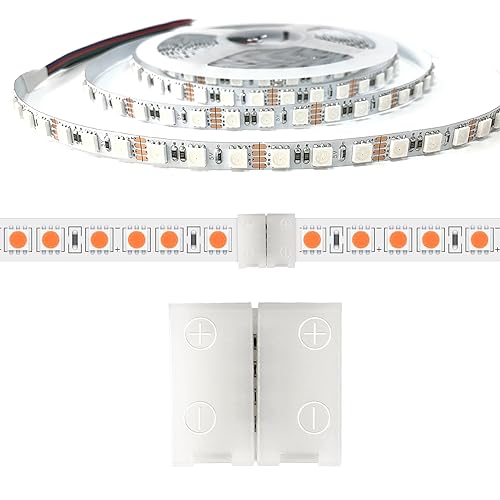

• Flex LED strip connector 10mm wide, connects two RGB 5050 flex strip lights and strip segments.
• Led strip connector connect any 5-24V low voltage power supply, any length of light strip can be cut to facilitate the connection, fast and safe connection.

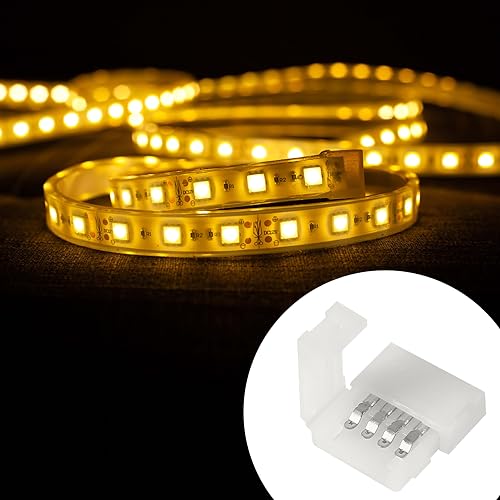

• Led strip light connectors for waterproof and non-waterproof light strips (if your led strip is waterproof drip strip, please peel the silicon from the surface around the soldering area before use.).

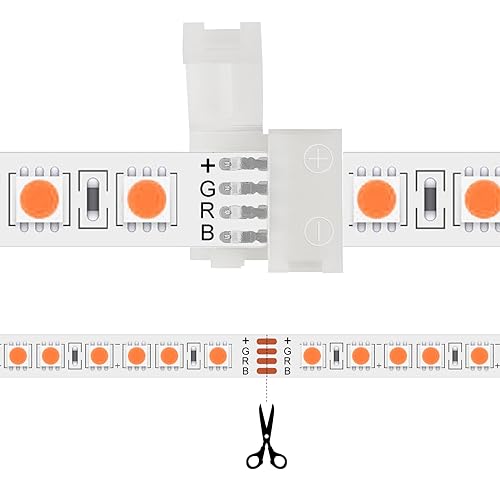

• Just slide the light strip under the connector's pins and snap the clip. (Tip: Please do not pry up the metal pins. Doing so may cause poor contact.). No matter in what orders are the RGB+ marked on the connectors, the connection work as long as the ”+” and “-” of the light strips on both sides are aligned.
• 4 pin connector Can realize the diversification in the installation of the light strip, multi-angle extension connection, to solve the installation of the light strip placed in the location of the limitations, also be sure to cut along the suggested line evenly so there is room for a proper connection on each side

Specification:
Style: I shaped
Suitable for: RGB 5050 LED strip light

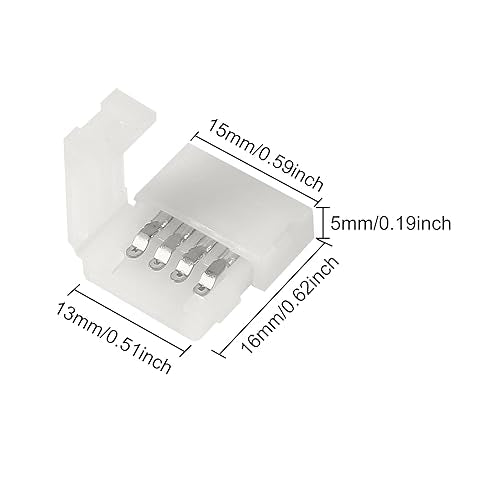

Width: 10mm (4-PIN)

Connections:

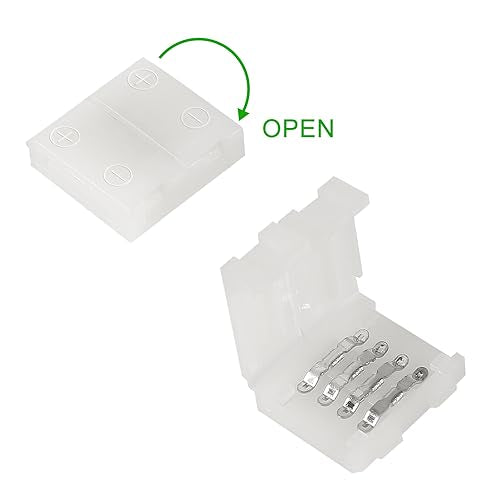

1. Open the I-shaped connector
2.Insert the light emitting diode strip light under the metal pins, make sure the metal pins touch the point (if your led strip is waterproof drip strip, please peel off the silicon from the surface around the soldering area before use.)
3.Close the wire clip(make sure the side of the strip aligns with the "+ -" polarity)
Note:
1. Ensure the pins will pierce 4 copper pads on FPCB when you quickly press down the connector with a pliers.
2. Make sure quickly presses on the each side of the connector with a pliers. Under the impact force, the wire-end blade go through insulation skin to contact conductor, then start its work.
3.Turn off the power before cutting and reattaching light strips.

Package Included:

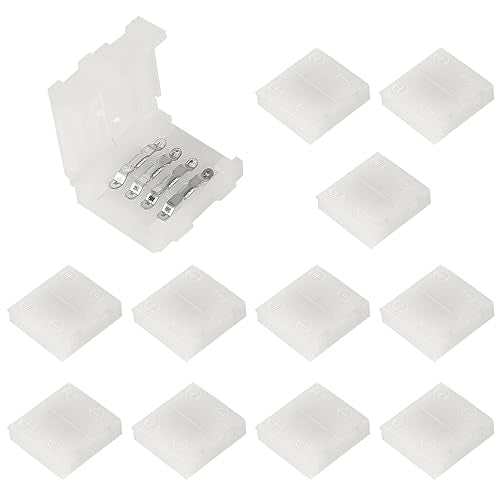

12 x 4 pin LED strip connector
