About this item

• Using high-performance humidity sensor elements, with water resistance, fast response, low humidity hysteresis, stable and reliable performance, good consistency and interchangeability
• Compatible with Beilu his06 humidity sensor;Model and specification: CHR07, characteristic impedance is 16KQ2(25°C,60%RH)

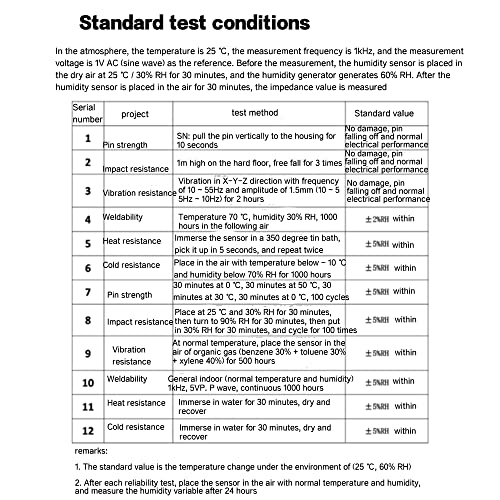

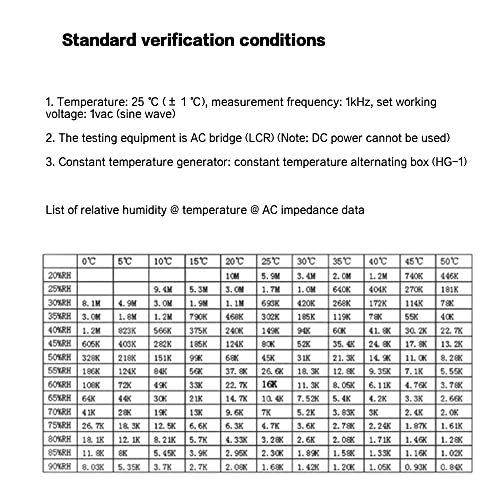

• Standard verification conditions: temperature 25°C (±1°C), measuring frequency 1KHZ, setting working voltage 1VAC (sine wave); testing equipment is AC bridge (LCR) (note that DC power supply cannot be used); using constant humidity generating device, Constant humidity alternating box (HG-1 type)
• Plug-and-play. No soldering and no programming required.4P2.0mm connecting wire port
• Scope of application: humidification equipment, dehumidification equipment (dehumidifier, dehumidification cabinet), air purifiers, mobile air conditioners and other environmental appliances; environmental monitoring, plant humidity control, agricultural planting, vegetable preservation, food preservation, storage, etc.; electronic perpetual calendar, radio clock (RCC), digital photo frame, home weather station, etc.

Electrical properties:
Working voltage: VPP≤5.5V
Working frequency: 500HZ-2000HZ
Working temperature: 0℃-50℃
Working humidity: 20%-95%PH
Stability: ≤2%RH/year
Temperature characteristics: ≤0.5%RH/℃
Consistency of humidity detection: ≤±3%RH
Response speed: less than 20S for moisture absorption; less than 30S for dehumidification
Water resistance: After soaking in water for 10 minutes, after natural drying and recovery, the humidity change is less than 2%; after soaking in water for 30 minutes, after natural drying and recovery, the humidity change is less than 5%

Package Includes: 1Pcs
